UNDER STRUCTURES

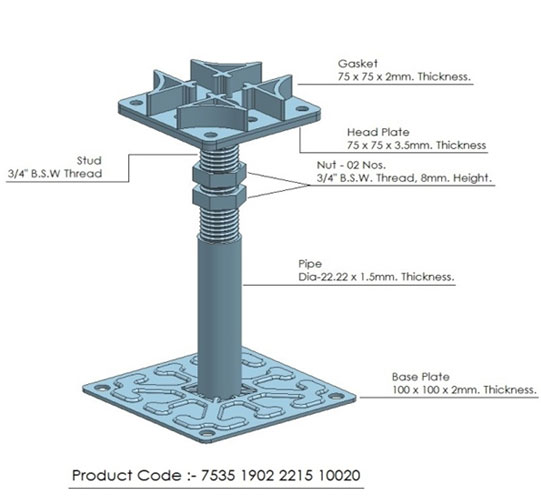

ESRG Pedestal

UNDER STRUCTURE

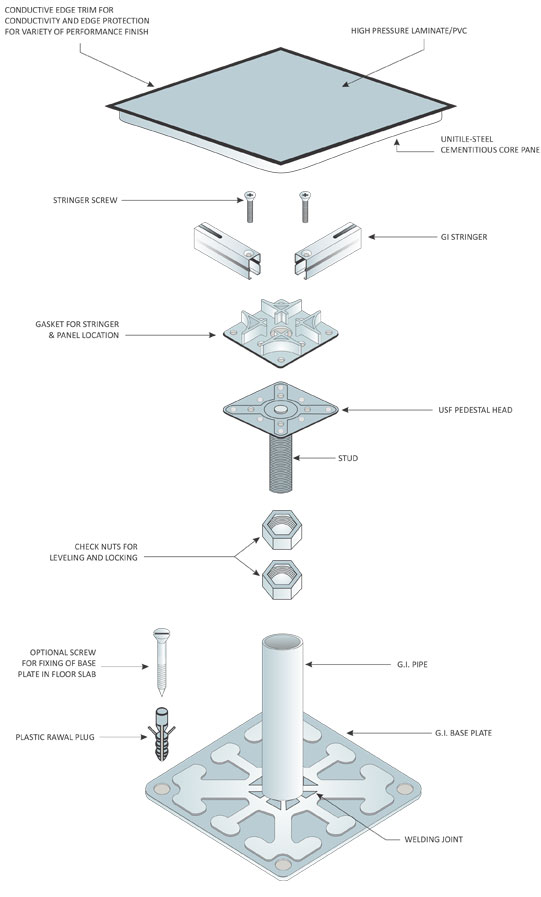

Isometric Drawing of Flooring USFI ESRG

FALSE FLOORING UNDERSTRUCTURE DETAILS:
PEDESTALS
  • ESRG Pedestal: Base plate 100mm x100mm x 2mm; jack head 75mm x 75mm x 3.5mm; Pipe 22mm OD with 1.5mm thick
  • Heavy Duty Pedestal : Pedestal base plate 100mm x100mm x 2mm; jack head 75mm x 75mm x 3.5mm; Pipe 25mm OD with 1.5mm thick
  • EIL Pedestal : Pedestal base plate 150mm x150mm x 4mm; jack head 90mm x 90mm x 4mm; Pipe 32mm OD with 2mm thick
    • STRINGER
  • Stringer Box Type : Stringer 17mm x 33mm x 589mm x 0.8 mm thick
  • Stringer Box Type : Stringer 16mm x 29mm x 589mm x 0.8 mm thick
  • Stringer Box Type for Heavy Duty/ EIL : Stringer 17mm x 33mm x 590mm x 1 mm thick)
  • Stringer C Type for Heavy Duty/ EIL : Stringer 21mm x 32mm x 570mm x 1.2 mm thick)
