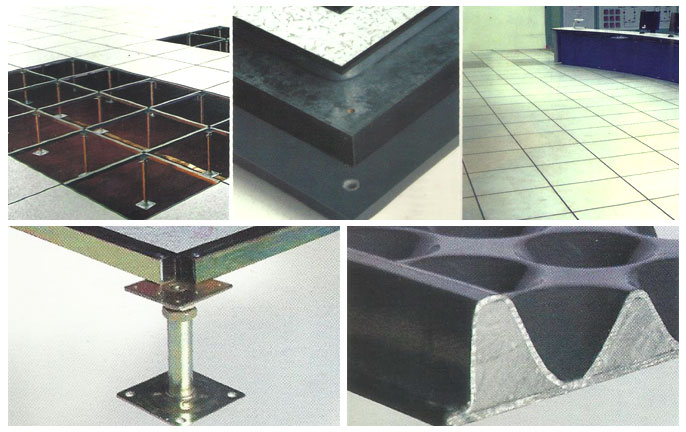

BARE FINISHED CEMENTITIOUS INFILL STEEL RAISED ACCESS FLOORING SYSTEM

CHARACTERISTICS
  • DIMENSIONS: 600mm x 600mm
  • PANEL THICKNESS: 30 mm – 35 mm
  • TOP: Flat Steel
  • CORE: Lightweight properietary cementitious mixture
  • UNDERSTRUCTURE: Corner Lock System, ESRG System
APPLICATIONS
  • Telecom
  • Data Centres
  • Server/UPS/HUB Rooms
  • Switch Rooms
  • Control Rooms
  • Power Plants
  • Banks
  • Laboratories
  • Offshore Platforms
  • Refineries
  • Steel Plants
  • Offices
SYSTEM SELCTION GUIDE
Grade USF 800 USF 1000 USF 1250 USF 1500 USF 2000 USF 2500
Concentrated Load kgs (lbf) 363 (800) 454 (1000) 567 (1250) 680 (1500) 907 (2000) 1134 (2500)
Ultimate Concentrated Loads kgs (lbf) 907 (2000) 1134 (2500) 1418 (3125) 1701 (3750) 1814 (4000) 2268 (5000)
Uniform Distributed Load kgs / sq mt (lbf /sq ft) 1650 (338) 2025 (415) 2450 (502) 3100 (636) 3600 (738) 4000 (820)
Rolling Load* kgs (lbf) 180 (397) 225 (496) 281 (619) 315 (694) 425 (937) 525 (1157)
